在电镀前将PU泡棉均匀打孔，然后整体电镀，这样不仅表面导电，而且上下整体都导通，具有了全方位的导电性。不同于导电橡胶衬垫镀银图层，此为普通Ni+Cu+Ni电镀，良好的密封性能可以替代部分高成本导电橡胶。

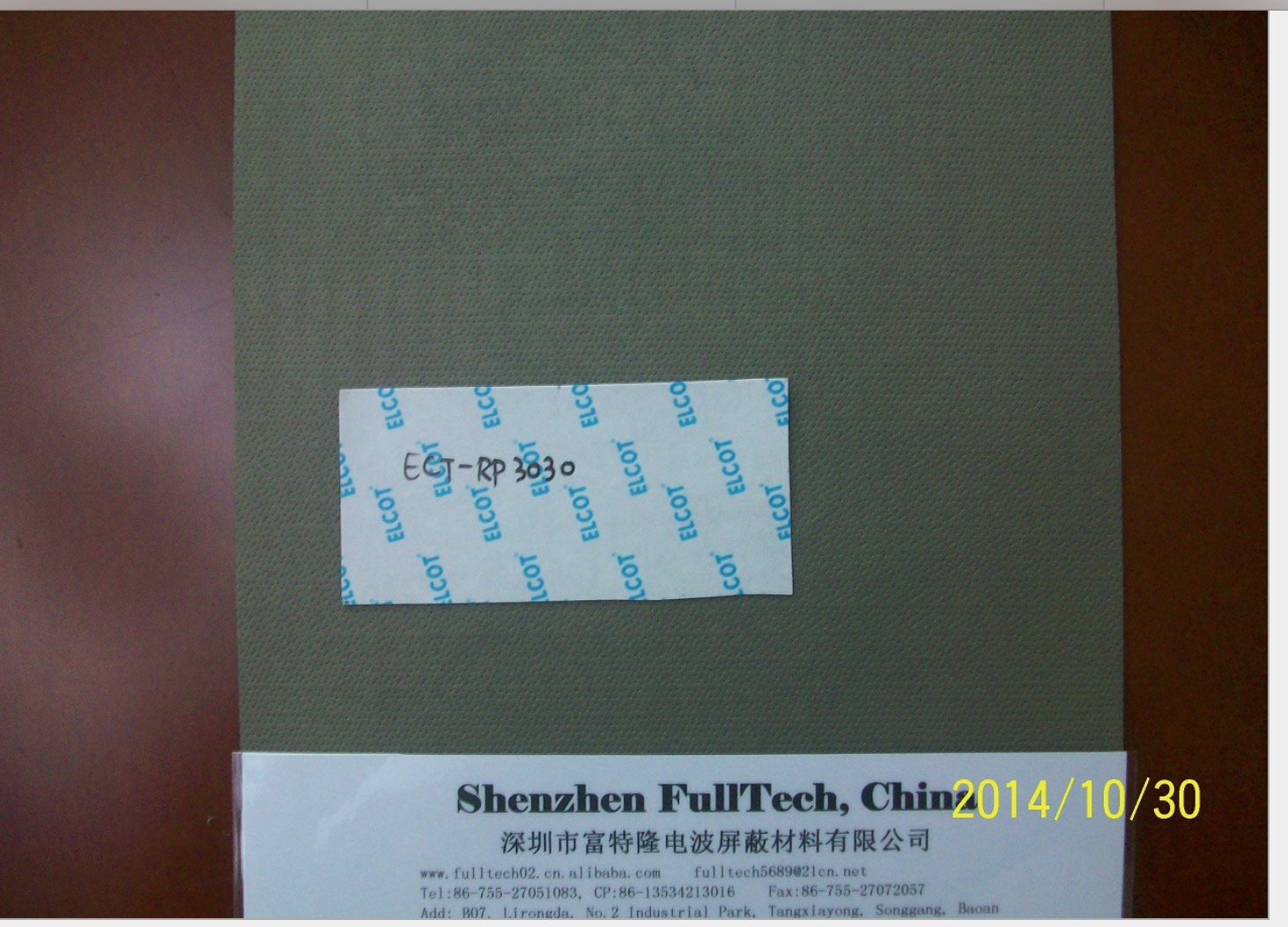

ECT-RP3000系列具有非常好的弹性，压缩比近70%，非常好的高温压缩回弹性（75℃,22Hr）,超薄厚度0.10mm还可以保持可压缩性和良好的弹性，适合高精度的屏蔽装配间隙，尺寸性能稳定，所以经金属化处理后用途广泛，用于尺寸公差小(+/-0.05mm)，适用高精密间隙配合，没有一般的导电泡棉存在的导电粒子凸起问题，适用于PDA, LCD,手机，数字电视，笔记本电脑等，目前已经成功应用于三星系列高端手机如Samsung Note4。

厚度系列：0.10,0.15,0.20,0.25,0.35,0.40mm,

It is polyolefin foam punched holes on the surface for vertical resistance. Existed conductive cushion materials are silver pasted product, but this product is electroless plated with Ni+Cu+Ni to have conductivity on it, its high performance of seal airtight performance make it possible to replace some of high cost conductive elastomer.

The ECT-RP3000 Series PU Foam have very good compression set, and near 70% compression rate, enhanced Restorative property after heat compression（75℃,22Hr）and conductivity in X, Y, and Z axis, Prevented particle issue and great shielding and grounding performance. Now it is using in name brand cell phone in the world such as Samsung。

The supper thin Thickness 0.10mm but keep good compression and suitable for high precision gap shielding for PDA, LCD, Cell Phone, Digital TV, Notebook etc. and now is using for Samsung Note 4.

Thickness: 0.10,0.15,0.20,0.25,0.35,0.40mm,
