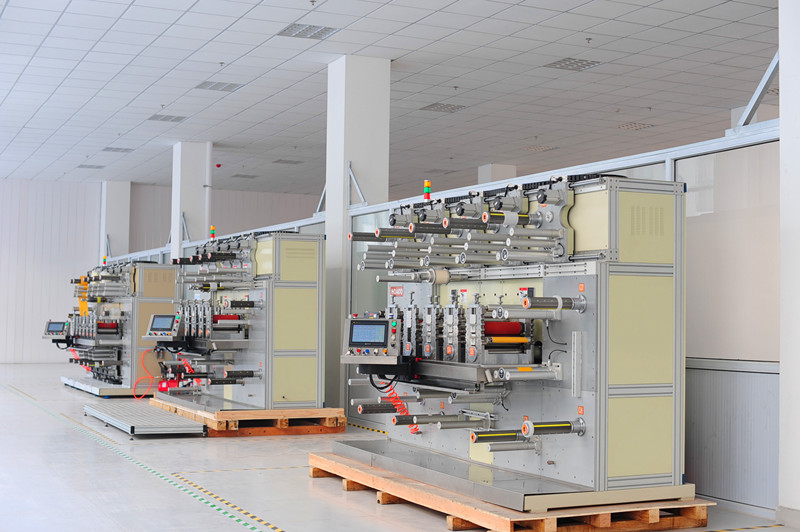

华滋多工位高精度圆刀模切机

【供应】华滋多工位高精度圆刀模切机

产品分类:圆压圆模切机(山东省 - 潍坊市)
产品价格:来电咨询
最小起订:1台

更新日期:2014-12-08浏览次数:65535

详细介绍

类型 模切机/设备 / 圆压圆模切机 型号
供货方式 供应 品牌
价格 来电咨询 最小起订量 1台

应用范围:

模切各种形状的单、双面不干胶、保护膜、垫片、防尘网以及铜铝箔等产品,应用于手机、手提电脑、掌上电脑、数码相机、音响等电子产品中的前后壳、视窗、显示器、话筒、听筒、键盘、电池等部分以及标签等的印后模切,尤其是对多层复合的产品,一次成型,效果明显,高速高效。



ROTARY DIE CUTTING MAHINE APPLICATION:

 Copper and alumInum foil and other products, used in mobile phones, laptops, PDA, digitalCamera,sound and other electronic products before and after the shell,Windows, display,microphone.the receiver.keyboard batteries,and part of the labels,and after printing die cutting, especially to the multilayer composite products,a molding,the effectis obvious,high speed and high efflcient.



机械结构优点:

一、主放料和主收料气涨轴采用固定结构,其余收放料轴采用可移动结构。该结构最大的优点是

1、可以根据产品工艺需要,将对应收放料轴移动到与刀座入口最佳的角度位置,减小材料变形,保证产品质量;

2、可有效减少导向轴数量;

3、更换刀具或刀座检修时可以将上层气涨轴移动到某一侧,增加操作空间。

二、刀座结构进行了优化设计,传动底座与支架板安装精度更高,并方便拆卸维修。

三、模切底轴(砧辊)两端轴承盒采用新型结构,安装后能保证底轴(砧辊)Y向窜动量小于0.02毫米,从而确保模切Y向套准精度。

四、气涨轴采用多瓦片式涨开方式,与键条式气涨轴比较能减小料卷涨开偏心误差,保证转动平稳。

五、张力控制选用科学合理的桥式测力结构,使得料带张力检测及控制更为精确。

六、机械零部件大量选用铝合金及不锈钢材料,对设备使用环境要求降低,尤其是我国南方潮湿多雨的地区不会出现锈蚀等影响产品精度的缺陷。



MECHANlCAL STRUCTURAL ADVANTAGES:

 1. Arelease axis and the receiving axis up the fixed structure,and the rest of axises use potable structure. This structure is the biggest advantage:

 ①.Can according to product process needs, the account will be feeding shaft move to and withhis sword the best Angle position a entrance,reduce material deformation,guarantee productquality.

 ②.Reducelhe number of axial direction;

 ③.Replace tools or knife a maintenance can be up to the upper air shaf move a side ,increaseoperation space

 2. Knife a structure  optimization design,transmission base and suppod plate installation higher accuracy.and remove the maintenance convenlence

 3. Die cutting the axis (anvil does roll) ends with new structure bearing box, after the installation can ensure the shaft (anviI does roll )Y  there momerdum to less than 0.02 mm ,so as to ensum that die cutting Y to alignment precision

 4. Gas up axis adopt more tiles up open type way ,and key type gas up axis is article can reduce material roll uP open eccentric error, ensure smooth rotation

 5. Tension control choose scientific and reasonable bridge type measu ring force structure,make strip lension fesf and control mere accurately

 6.Mechanical parts of alummum alloy and stainless steel material selection of equipmentto reduce the use environment,especially in the south of moistu re in the rain will not appear on the accuracy of the corrosion defects products.



电气控制优点:

一、操控更灵活:生产线上每一个气胀轴均可自由设定为原料轴(放料轴)、废料轴(收废料轴)或成品轴(收成品轴),通过触摸屏可方便实现启动、停止和改变旋转方向。每个模切工作站可根据产品工艺要求设定为主站,可随时改变旋转工作方向或停止工作。

二、套准更精确稳定: 保持工作站纵向稳定无偏差,使套准更精确;所有的气胀轴均由最先进的张力传感器控制,可随时调整不同材料所需的不同张力,确保材料复合贴合、裁切尺寸正确,可确保所有工作站的裁切精度在±0.15mm以内。

三、手动或自动调节更精确:采用更先进的电气运算控制方法,使每一个模切工作站手动或自动调节刀具的套准更精确。

四、主控、伺服驱动:每一个模切工作站均由同系主控、伺服电机驱动,保证系统整体运行响应统一性,从而使产品精确模切,并可根据客户实际工艺要求开发功能块程序。

五、操作台采用可滑动+旋转式结构,方便操作人员在不同工位操作。



ELECTRlCAL CONTROL ADVANTAGES:

1. Contro more flexible production Iine every air expansion shaft all can set freely as raw materialaxis(feeding shaft),waste axis(accepl waste axis)or products axis(the finished product axis) through the touch screen is easy to effect stad stop and change the direction of rotation .Each die cutting workstations product process requirement set according to give priority to stand,may at anytime change direction or stop rotating work.

2. Alignment more precise stable:keep the workstation longitudinal stability withoul deviation,make more accurate alignment;All the air expansion shaft all by the most advanced tension sensor control can adjust different materials required diffe renttension,ensure that materials composite Joint cutting proper size can ensure that all of the cutting precision workstalions inwithin+/0.075mm

3. Manual or automatic adjustment more accurate:the more optimized electrical operation control method to make eve ry die cutting workstation manual or automaticadjustment tool set must be more  precise

4. Master,seato d rive:every die cutting workstations are of the same master,seato motor drive Ensure  the whole running system response unity thusmakethe product precise die cutling and may according to the customer request development function blocks practical process  procedure.

5. The work station slide+rotary structure,convenient operation personnel in different location operation
