Bond-Ply BP100 thermal double-sided pressure-sensitive adhesive tape having a thermal conductivity and insulating properties, which is made of a coated PSA (pressure sensitive adhesive) on a glass fiber or film having good adhesive properties, at high temperatures and temperature long-term to maintain a high bond strength, may dispense with clips, screws or rivets.

Bond-Ply BP100导热双面压敏胶带具有导热及绝缘性能，它是由PSA（压敏粘合剂）涂覆在玻璃纤维或薄膜上制成，其良好的粘接性能，在高温和中温下长期保持高粘接强度，可免除夹、螺丝或铆钉固定。

Features 特性：

Bond-Ply thermal tape BP100 is coated on both sides of the substrate is made of high-performance thermal plastic, good thermal conductivity, pressure and viscosity characteristics that can replace mechanical fasteners or screws.

贝格斯导热胶带BP100是在基材的两面涂覆高性能的导热胶制成，有很好的导热、耐压及粘性特点，可以替代机械扣件或者螺丝。

Typical applications 典型应用：

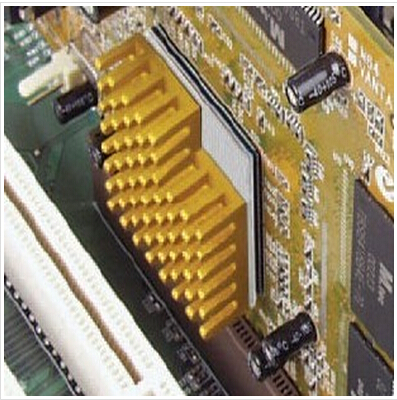

•  The heat sink is bonded to the BGA graphics accelerator, the computer processor, the drive, a power converter PCB and so on;

•  将散热片粘接到BGA图形加速器、计算机处理器、驱动器上、功率转换器PCB等；

•  Can replace the heat curing adhesive, screws, springs fixation;

•  可代替热固化粘合剂、螺丝固定、簧片固定等；

•  In particular, can not withstand high temperatures used in some curing conditions, but require bonding radiator products;
•  尤其应用于一些不可抵受高温固化条件，而又需要粘合散热器的产品；

•  For high power LED heat sink bonding
•  用于大功率LED粘接散热器。

Performance parameters 性能参数：
